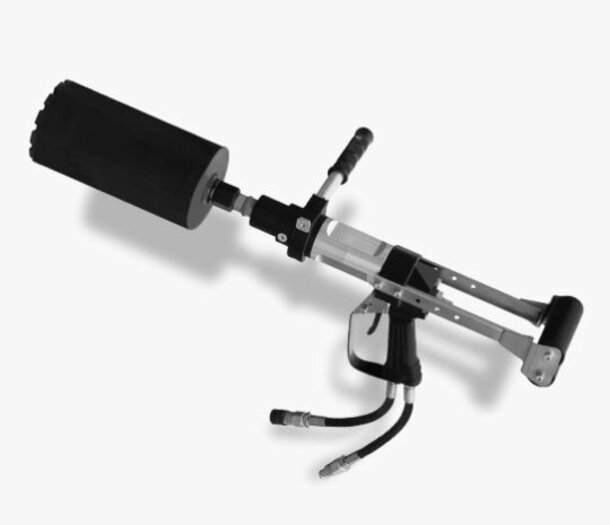

AK46 S

Introducing the AK46 S – The Ultimate Hydraulic Core Drill for Versatile and Efficient Drilling

AK46 – Hydraulic Core Drill

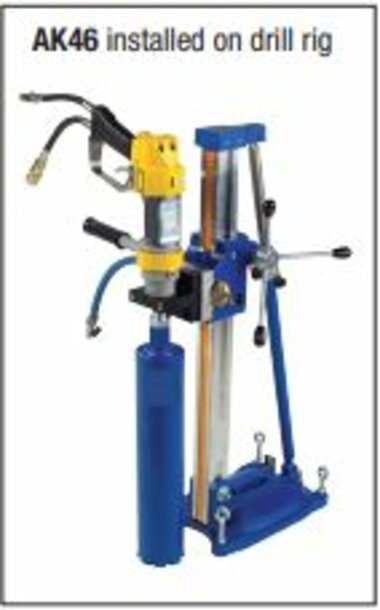

The AK46 S is the latest in hydraulic core drill technology, designed for both manual use and use with drill rigs. This versatile tool is available in two configurations, the AK46 S and AK46 G, to cater to a wide range of drilling needs.

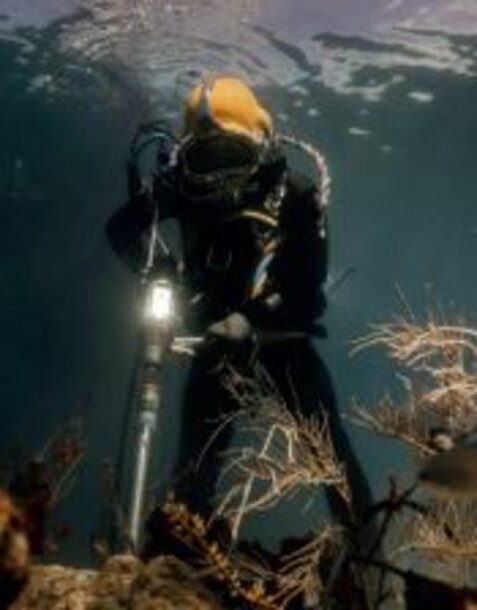

The AK46 S is specifically designed for holes ranging from ø 30 to 100 mm, making it perfect for a variety of applications such as maintenance of gas, water, and sewer networks, and even for use in historical buildings where vibrations cannot be tolerated. The AK46 G, on the other hand, is ideal for larger holes ranging from ø 80 to 160 mm, making it a perfect choice for high pressure water applications and underwater work.

Superior Technical Features for Unmatched Performance

The AK46 S boasts an array of advanced technical features that offer several advantages over traditional electric core drills. These include:

• Electric Shock-Proof: With hydraulic operation, the AK46 S eliminates the risk of electric shocks, making it safe to use even when fully immersed in water.

• No Vibration or Noise: The AK46 S operates smoothly and quietly, making it a perfect choice for noise-sensitive environments.

• Lightweight and Compact: Weighing just 8 kg (without back handle) and with dimensions of 40 x 9 x 32 cm, the AK46 S offers an unbeatable weight/power/dimension ratio, making it easy to handle and transport.

• Durable and Low Maintenance: The AK46 S is built to last with a long operational life and minimal maintenance needs. And its hydraulic motor is designed to withstand prolonged rotation block or overload, which would damage electric tools.

• Unmatched Performance: With an oil flow of 20-30 L/min and operating pressure of 140-180 bar, the AK46 S offers impressive speeds of up to 600 RPM at 20 L/min and 1500 RPM at 30 L/min.

The AK46 S is the go-to choice for situations where traditional electric tools fall short. Its versatile design and superior performance make it ideal for a wide range of applications, including maintenance of gas, water, and sewer networks, historical buildings, high water pressure applications, and even underwater work.

Efficient and Convenient Design

The AK46 S is designed to make drilling easier and more efficient with its convenient features, including:

• Lightweight and Compact: Weighing just 8 kg, the AK46 S is easy to handle and transport, making it perfect for both manual and rig use.
• Cut Capacity: With a cut capacity of 30-100 mm, the AK46 S can handle a variety of drilling needs.
• Optimal Oil Flow: With an oil flow of 20-30 L/min, the AK46 S offers optimal speeds for efficient drilling.
• External and Internal Core Bit Attachments: The AK46 S is compatible with 1-1/4” BSP male and 1/2” BSP female core bit attachments, making it easy to switch between different bit sizes.
• Operating Pressure: The AK46 S operates at a pressure of 140-180 bar, providing optimal power for efficient drilling.
• Crown Flush Distance: With a flush distance of 45 mm, the AK46 S ensures clean and precise drilling without
