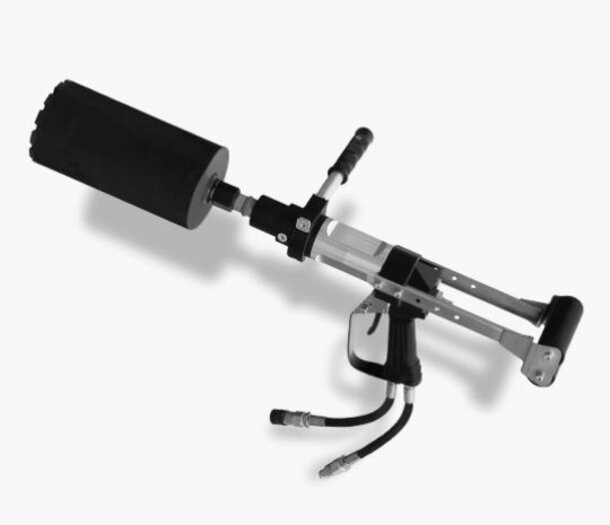

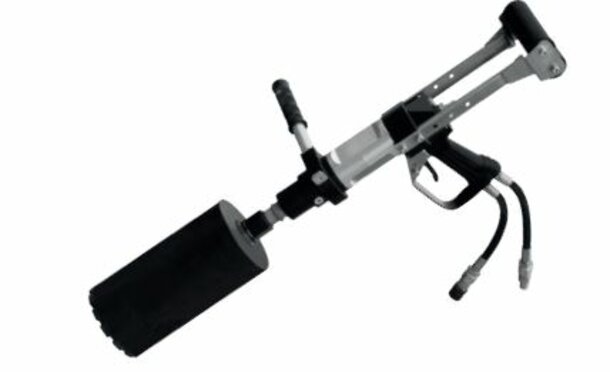

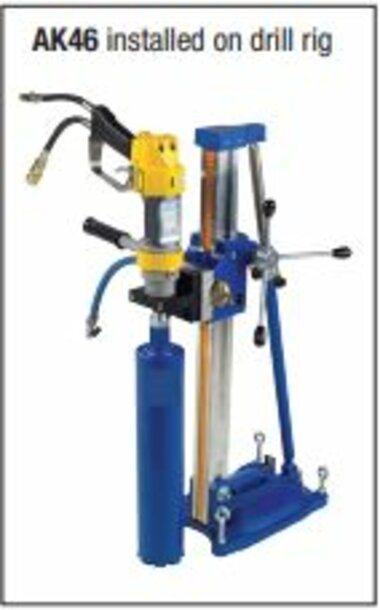

Introducing the AK46 G - the ultimate hydraulic core drill for all your drilling needs. Whether you need to drill manually or with a drill rig, the AK46 G is the perfect tool for the job. Designed with superior technical features and available in two configurations, this hydraulic core drill offers unbeatable performance and efficiency.
Configuration Options
The AK46 G is available in two configurations to cater to a wide range of drilling requirements:
- AK46 S: Ideal for holes ranging from ø30 to 100 mm
- AK46 G: Perfect for holes ranging from ø80 to 160 mm
Advantages of Hydraulic Operation
The hydraulic operation of the AK46 G offers several advantages over traditional electric core drills, making it the preferred choice for many professionals. These include:
- No risk of electric shocks, even when fully immersed in water
- Minimal noise and vibrations for a comfortable drilling experience
- Unbeatable weight/power/dimension ratio for easy handling and transport
- Long operational life and minimal maintenance needs
- The hydraulic motor is not susceptible to damage from prolonged rotation block or overload, unlike electric tools.
Perfect for Various Applications

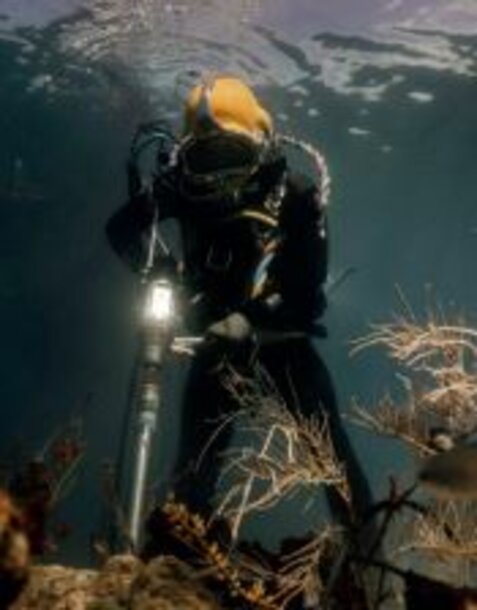

The AK46 G is the go-to tool for many situations where traditional electric tools are not suitable. It is perfect for maintenance work on gas, water, and sewer networks, as well as for drilling through the walls of historical buildings that cannot withstand vibrations. Its efficiency is also unmatched for high water pressure applications in trenches and underwater work.
Technical Features
The AK46 G comes with a range of technical features that make it a powerful and reliable hydraulic core drill. These include:
- Weight: 8 kg (without back handle)
- Dimensions (L x W x H): 40 x 9 x 32 cm
- Cut Capacity: 80-160 mm
- Oil Flow: 20-30 L/min
- Speed at 20 L/min: 400 RPM
- Speed at 30 L/min: 1000 RPM
- Operating Pressure: 140-180 bar
- Distance Crown Flush with Wall: 45 mm
- Core Bit Attachment: External 1-1/4" BSP Male, Internal 1/2" BSP Female.
Invest in the AK46 G for Unbeatable Performance
The AK46 G is the perfect combination of power, efficiency, and reliability. With its hydraulic operation and superior technical features, it offers unmatched performance and is the ideal alternative to traditional electric tools. Don't miss out on the opportunity to own this versatile and indispensable hydraulic core drill. Invest in the AK46 G today and take your drilling game to the next level.
